Ice Surface Size
45,192 ft²
Blade Length
90 1/2" - 98 7/16" inches
Powered By
80V - LifePO4 Lithium Battery- 200 - 560AH
80V - Lead Acid Battery - 625 - 775AH
Snow Tank Size
145 ft³ / compacted 180 ft³
Water Tank Size
317 gal / 370 gal / 528 gal
Model Name
evo²
Field of Operation
PRO / Heavy Duty
Turning Radius
15'-3"
Introduction
The WM evo² is a high-performance ice resurfacer that works its way effortlessly round ice rinks or arenas. The large water and snow tanks can be easily connected for maximum flexibility, while electric, diesel, gasoline engines ensure powerful drive.
An ultra-rapid 60 second blade-change system, at-a-glance control system, and automatic mode make for outstanding ease of use. Trouble-free, rapid access to the engine compartment allows for fast easy maintenance.
The Champion for Pros: The WM evo² guarantees exceptional ice quality on large surfaces of over 45,192 ft2 - (4,200 m2).
Water System Highlights
Need more than 660 USG (2,500 liters) of water?
No problem!
When you're building up ice depth or using the water sprayer, more water is a must. The WM evo² has it all taken care of! The water and snow tanks can easily be connected into one water tank with a total volume of around 673 USG (2,550 liters) of water. No more standing in cold water and tiresome tugging on hoses: All operations can be carried out from the comfort of the driver's cab - there's more than enough water to do the job.
Water Tank & Snow Bin Examples
Standard Tank: 317 USG (1,200-liter) water tank & snow tank = 673 USG (2,550 liters) of water
Large Tank: 370 USG (1,400-liter) water tank & snow tank = 726 USG (2,750 liters) of water
Customer Service
Take a look at all of the standard features and the numerous optionals for the WM evo². We will be happy to customize equipment precisely to our clients’ requests.
60 Second Blade Change
The WM evo2 quick blade-change system eases working life enormously: Blades can be changed in just 60 seconds! The blades are made in a special steel, giving you both an above-average service life and an impressive weight: They are just 6.6 lbs. Blade changes can be carried out quickly and safely. Two blades together with all accessory equipment are supplied as standard in a practical wooden transport box.
Less then 60 seconds blade changes
Blade weighs less then 7 pounds
One employee operation
Easy, quick and precise blade change
Low injury risk
Improved quality of ice
Equipment
The initial setup, maintenance and repairs will be performed by our factory trained technitions so that we can guarantee you rapid customer service, directly on site and at all times.
Integrated Ice Edger
The edger is fixed to the body of the WM evo2, guaranteeing you outstanding stability and performance. It can be operated easily and safely from the driver's seat. The innovative horizontal spring-loaded system with guide wheel ensures that the edger follows the contours of the rink to perfection, and planes the ice evenly, rapidly and cleanly. Edging and subsequent cleaning of the ice surface with the swivel brushes can be carried out in one simple step. The edgers are positioned between the axels and in front of the brush, to ensure an unrestricted overview of the vehicle. When not in use, the edgers are stored between the wheels, and do not affect operation in any way.
Outstanding stability.
Horizontal spring-loaded system.
Consistently high ice quality
Product Details
Modern design, the best of quality and ease of maintenance: Resurfacing of ice rinks has never been so professional or so simple!
Snow tank volume - 145 ft3 / compacted 180 ft3
Standard water tank volume - 317 USG
Standard water tank + snow tank connection volume - 673 USG
Blade width - 90.5" inches or 98.5
Turning Radius - 15.25' feet
Field of operation - PRO / Heavy Duty
Powered by - Battery and AC Drive Motors
Options:
Large water tank volume - 370 USG
Large water tank + snow tank connection volume - 726 USG
X-Large water tank volume - 528 USG.
Ease of Maintenance

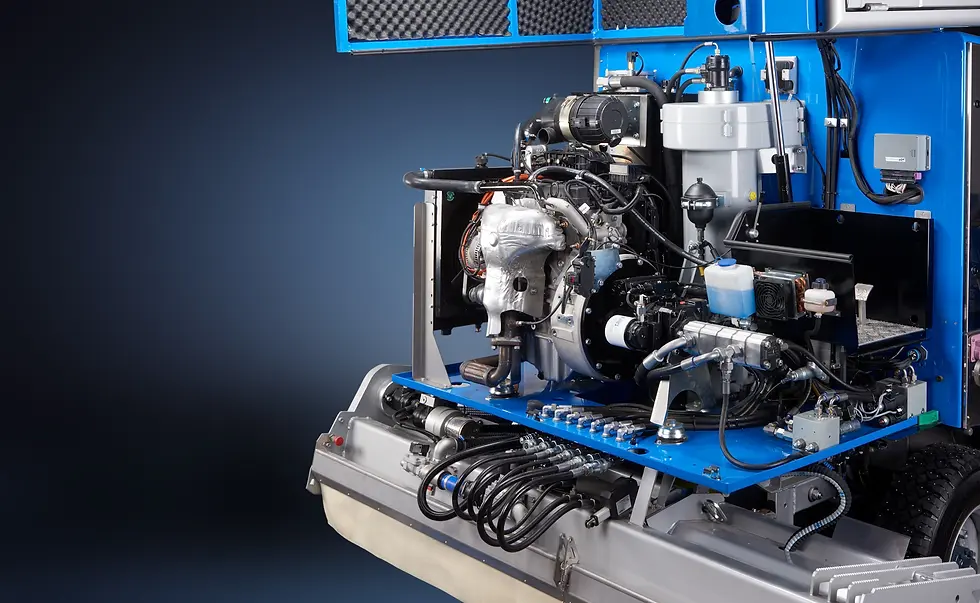

The entire machine technology is easily accessible just by lifting the cab. This means that mechanics can carry out their work quickly and cleanly, which in turn saves on time and service costs. Our team may also utilize remote monitoring through the optional WM Connect App to keep an eye on your vehicle and address any issues that may arise. Make the most of all the advantages of direct contact with the manufacturer!
Cost-efficient maintenance and operation.
Free and easy access to the engine compartment.
Online spare parts catalogue Blue Shop
Shira or Mammoth: which is the ideal solution for your stadium?
They may at first glance seem similar, but it is the details that determine the ideal machine for your facility. We have compared the Shira and Mammoth models to highlight the key differences between them in terms of their operational capacity, dimensions and automation systems. This comparison will help you understand where Shira’s agility ends and Mammoth’s productive power begins.
Ice Surface Size
28,000 ft²
2,600 m²
Snow tank volume
106 ft³ / compacted 127 ft³
3 m³ / compacted 3.6 m³
Water tank volume
264 gal / 356 gal / 462 gal
1,000 l / 1,350 l / 1,750 l
+ Snow tank-water tank connection (for water fountain sprayer)
528 gal / 620 gal / 726 gal
2,000 l / 2,350 l / 2,750 l
Blade width
82 5/8 in / 90 1/2 in
2,100 mm / 2,300 mm
Blade change
5 minutes
Motor
5 asynchronous motors
Optional 6 asynchronous motors
Speed
0 - 8 mph
0 - 13 km/h
Display
High-resolution 7” color touchscreen
Controls
Keyboard
Driver‘s seat
Spring-suspended & adjustable driver‘s seat with armrests
Passenger/Training Seat
Yes - SUVA certified
Service brake
Optional
Snowbin inspection hatch
Manual snowbin inspection hatch
Water Fountain Sprayer
Optional
Conditioner system material
Powder-coated steel
Cutting Blade
Regular blade
Board Brush
Galvanized steel side brush
Ice Edger
Galvanized steel edger
Snow bin & water tank connection
Yes
Automatic water filling system with immobilizer
Yes
Bodywork
1-colour bodywork
Wheel rims
9″ x 16″
Bumper
No
Daytime running lights
Optional
WM Connect wi-fi
Optional
WORKspace
Yes - Online 3D parts ordering
Autopilot 3D
No
IceSense
No
Ice Surface Size
28,000 ft²
2,600 m²
Snow tank volume
106 ft³ / compacted 127 ft³
3 m³ / compacted 3.6 m³
Water tank volume
264 gal / 356 gal / 462 gal
1,000 l / 1,350 l / 1,750 l
+ Snow tank-water tank connection (for water fountain sprayer)
528 gal / 620 gal / 726 gal
2,000 l / 2,350 l / 2,750 l
Blade width
82 5/8 in / 90 1/2 in / 98 7/16 in
2,100 mm / 2,300 mm / 2,500 mm
Blade change
< 60 seconds
Motor
5 asynchronous motors
Optional 6 asynchronous motors
Speed
0 - 8 mph
0 - 13 km/h
Display
Dual Screen: 2 high-resolution 7” color touchscreens
Controls
Joystick
Driver‘s seat
Spring-suspended & adjustable driver‘s seat with armrests (fabric)
Passenger/Training Seat
Yes - SUVA certified
Service brake
Service brake with hydraulic brake force booster
Snowbin inspection hatch
Electrical snowbin inspection hatch
Water Fountain Sprayer
Optional
Conditioner system material
Stainless steel
Cutting Blade
Super-light blade - 7.72 lbs or 3.5 kg
Board Brush
Stainless steel side brush
Ice Edger
Stainless steel edger
Snow bin & water tank connection
Yes
Automatic water filling system with immobilizer
Yes
Bodywork
2-colour bodywork
Wheel rims
9″ x 16″ with hubcaps
Bumper
Yes
Daytime running lights
Led daytime running light
WM Connect wi-fi
Optional
WORKspace
Yes - Online 3D parts ordering
Autopilot 3D
Optional
IceSense
Optional
