Ice Surface Size
28,000 ft² - 100'x200'
Blade Length
82 5/8" - 90 1/2" inches
Powered By
80V - LifePO4 Lithium Battery- 200 - 560AH
80V - Lead Acid Battery - 450 - 775AH
Snow Tank Size
106 ft³ / compacted 127 ft³
Water Tank Size
264 gal / 356 gal / 462 gal
Model Name
Shira - Battery
Field of Operation
PRO / Ice Stadiums
Turning Radius
14'-9"

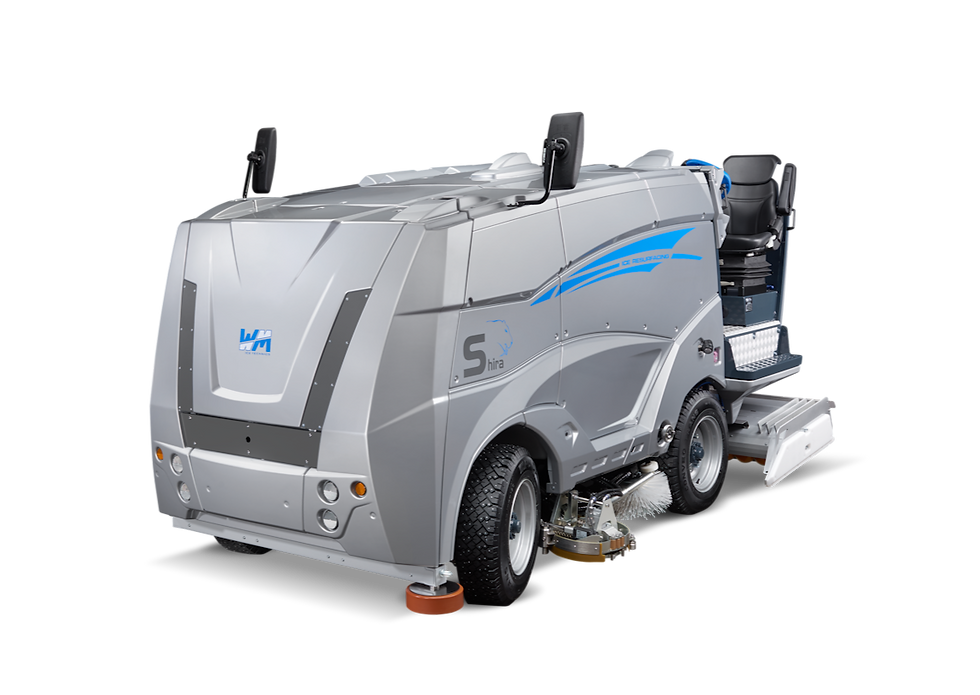

Introduction
Powerful drives powered by electric motors and flexible combinations of snow and water tanks: The WM Shira is specially designed for efficient ice resurfacing in stadiums, offering an excellent price-performance ratio. It features a user-friendly control panel that simplifies operation thanks to clear information displays and an automatic mode. Additionally, quick access to all technical components ensures fast and cost-effective maintenance. Equipped with a market-standard thick blade, Shira handles even the most demanding tasks effortlessly, guaranteeing durability and precision for flawless results. Blade changes take just 5 minutes!
Highlights
Everything under control in the driver's cab The WM Shira is a guarantee of outstanding comfort for the driver and boasts a full, unobstructed view whether you're driving cabin-free or with all-around glass. A step board provides easy entry to the vehicle, where all important information is clearly visible at a glance on the high-definition color touch display, and all the main functions are keyboard-controlled. Simply press the A/M button, and the automatic mode begins all work operations in a pre-defined order.
Water System Highlights
Need more than 528 USG (2,000 liters) of water? No problem!
When you're building up ice depth or using the water sprayer, more water is a must. The WM Shira has it all taken care of! The water and snow tanks can easily be connected into one water tank with a total volume of around 528 USG (2,000 liters) of water. No more standing in cold water and tiresome tugging on hoses: All operations can be carried out from the comfort of the driver's cab - there's more than enough water to do the job.
Water Tank & Snow Bin Examples
Example: Standard Tank: 264 USG (1,000-liter) water tank & snow tank = 528 USG (2,000 liters) of water
Example: Large Tank: 357 USG (1,350-liter) water tank & snow tank = 621 USG (2,350 liters) of water

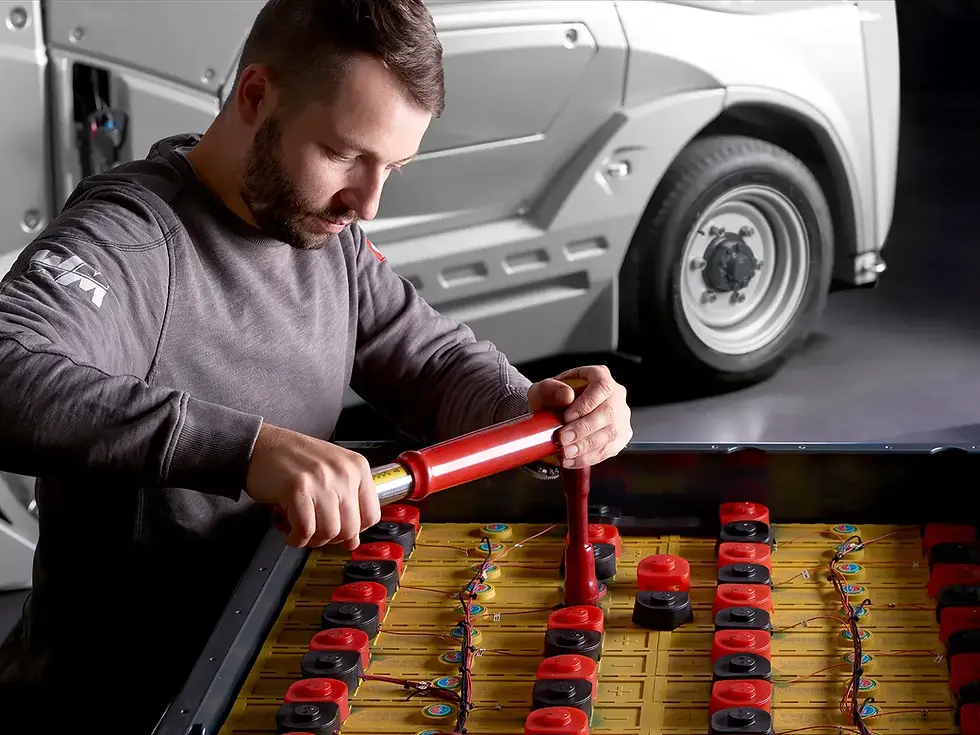

Shira Battery Technology
Lithium-Iron Phosphate (LiFePO4)
Lifetime: at least 3-4 times as many charge cycles as lead batteries
Weight: weight reduced by 75% compared to lead batteries
Efficiency: only 1-2 kWh per ice resurfacing
Performance: high discharge power and extremely high peak power
Charging time: extremely fast charging with a fast charging terminal (80 % in 60 minutes)
Maintenance: maintenance free
Energy density: high energy density - one small battery is sufficient
Temperature range: -45 °C to 85 °C(recommended: -25 °C to 55 °C)
Fast payback: due to less maintenance, high efficiency in consumption, longevity
Cost/benefit: cost-intensive purchase/long lifetime
Security: Due to their cell chemistry, LiFePO4 cells are considered to be intrinsically safe as they eliminate the risk of thermal runaway and membrane melting which can occur in other lithium-ion accumulators. Operator safety is enhanced as no toxic gases are emitted while charging.
Integrated Edger
The edger is controlled conveniently and risk-free directly from the driver’s seat. The innovative horizontal suspension system with board guides ensures the edger adapts optimally to the edge contours at a constant milling depth. In addition, excess ice is efficiently and cleanly removed.
WM’s powerful ice resurfacer for stadiums suits ice surfaces of 2,600 m² / 28,000 ft².
Powerful drives powered by electric motors and flexible combinations of snow and water tanks: The WM Shira is specially designed for efficient ice resurfacing in stadiums, offering an excellent price-performance ratio. It features a user-friendly control panel that simplifies operation thanks to clear information displays and an automatic mode. Additionally, quick access to all technical components ensures fast and cost-effective maintenance.
Equipped with a market-standard thick blade, Shira handles even the most demanding tasks effortlessly, guaranteeing durability and precision for flawless results. Blade changes take just 5 minutes!
Ease of Maintenance
The entire machine technology is easily accessible just by lifting the cab. This means that mechanics can carry out their work quickly and cleanly, which in turn saves on time and service costs. Our team may also utilize remote monitoring through the optional WM Connect App to keep an eye on your vehicle and address any issues that may arise. Make the most of all the advantages of direct contact with the manufacturer!
Cost-efficient maintenance and operation.
Free and easy access to the engine compartment.
Optional WM Connect remote maintenance.
Online spare parts catalogue Blue Shop
Shira or Mammoth: which is the ideal solution for your stadium?
They may at first glance seem similar, but it is the details that determine the ideal machine for your facility. We have compared the Shira and Mammoth models to highlight the key differences between them in terms of their operational capacity, dimensions and automation systems. This comparison will help you understand where Shira’s agility ends and Mammoth’s productive power begins.
Ice Surface Size
28,000 ft²
2,600 m²
Snow tank volume
106 ft³ / compacted 127 ft³
3 m³ / compacted 3.6 m³
Water tank volume
264 gal / 356 gal / 462 gal
1,000 l / 1,350 l / 1,750 l
+ Snow tank-water tank connection (for water fountain sprayer)
528 gal / 620 gal / 726 gal
2,000 l / 2,350 l / 2,750 l
Blade width
82 5/8 in / 90 1/2 in
2,100 mm / 2,300 mm
Blade change
5 minutes
Motor
5 asynchronous motors
Optional 6 asynchronous motors
Speed
0 - 8 mph
0 - 13 km/h
Display
High-resolution 7” color touchscreen
Controls
Keyboard
Driver‘s seat
Spring-suspended & adjustable driver‘s seat with armrests
Passenger/Training Seat
Yes - SUVA certified
Service brake
Optional
Snowbin inspection hatch
Manual snowbin inspection hatch
Water Fountain Sprayer
Optional
Conditioner system material
Powder-coated steel
Cutting Blade
Regular blade
Board Brush
Galvanized steel side brush
Ice Edger
Galvanized steel edger
Snow bin & water tank connection
Yes
Automatic water filling system with immobilizer
Yes
Bodywork
1-colour bodywork
Wheel rims
9″ x 16″
Bumper
No
Daytime running lights
Optional
WM Connect wi-fi
Optional
WORKspace
Yes - Online 3D parts ordering
Autopilot 3D
No
IceSense
No
Ice Surface Size
28,000 ft²
2,600 m²
Snow tank volume
106 ft³ / compacted 127 ft³
3 m³ / compacted 3.6 m³
Water tank volume
264 gal / 356 gal / 462 gal
1,000 l / 1,350 l / 1,750 l
+ Snow tank-water tank connection (for water fountain sprayer)
528 gal / 620 gal / 726 gal
2,000 l / 2,350 l / 2,750 l
Blade width
82 5/8 in / 90 1/2 in / 98 7/16 in
2,100 mm / 2,300 mm / 2,500 mm
Blade change
< 60 seconds
Motor
5 asynchronous motors
Optional 6 asynchronous motors
Speed
0 - 8 mph
0 - 13 km/h
Display
Dual Screen: 2 high-resolution 7” color touchscreens
Controls
Joystick
Driver‘s seat
Spring-suspended & adjustable driver‘s seat with armrests (fabric)
Passenger/Training Seat
Yes - SUVA certified
Service brake
Service brake with hydraulic brake force booster
Snowbin inspection hatch
Electrical snowbin inspection hatch
Water Fountain Sprayer
Optional
Conditioner system material
Stainless steel
Cutting Blade
Super-light blade - 7.72 lbs or 3.5 kg
Board Brush
Stainless steel side brush
Ice Edger
Stainless steel edger
Snow bin & water tank connection
Yes
Automatic water filling system with immobilizer
Yes
Bodywork
2-colour bodywork
Wheel rims
9″ x 16″ with hubcaps
Bumper
Yes
Daytime running lights
Led daytime running light
WM Connect wi-fi
Optional
WORKspace
Yes - Online 3D parts ordering
Autopilot 3D
Optional
IceSense
Optional
