Ice Surface Size
28,000 ft² - 100'x200'
Blade Length
82 5/8" - 90 1/2" - 98 7/16" inches
Powered By
80V - LifePO4 Lithium Battery- 200 - 560AH
80V - Lead Acid Battery - 450 - 775AH
Snow Tank Size
106 ft³ / compacted 130.7 ft³
Water Tank Size
264 gal / 356 gal / 462 gal
Model Name
WM Mammoth
Field of Operation
PRO / Heavy Duty
Turning Radius
14'-9"
Introduction

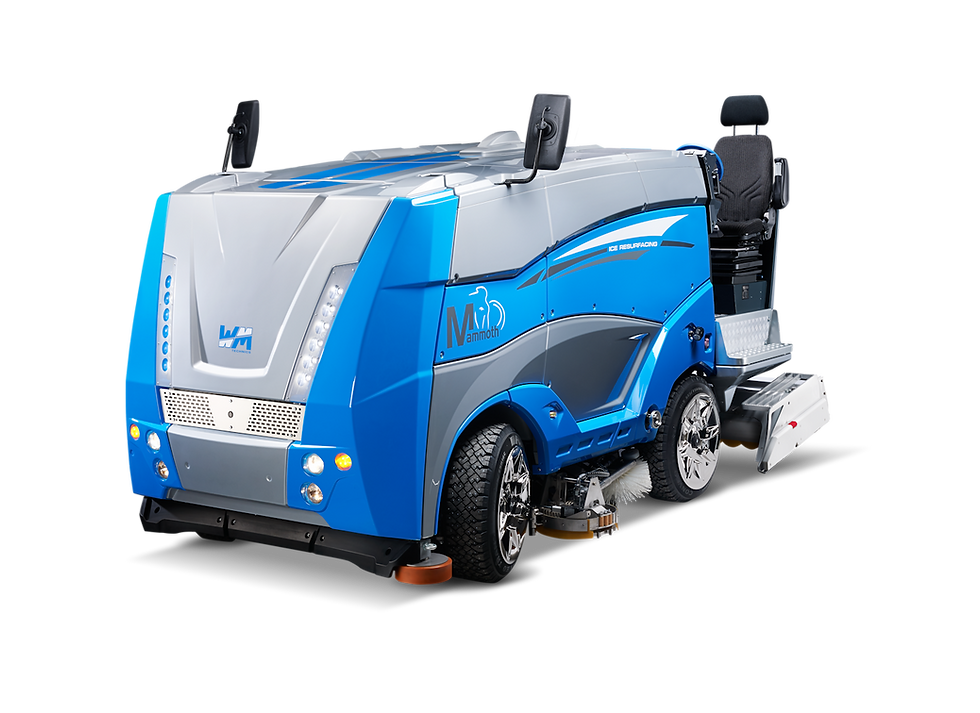

When it comes to flawless ice arena resurfacing, the WM Mammoth Lithium (LiFePO4) battery-powered ice resurfacer has it all: high-performing, maintenance-free batteries and AC motors, onboard diagnostics, ice edger with joystick-operated depth control, a large snow and water tank capacity, and an ultra-rapid 60-second blade-change system.
With its compact build the machine has an extremely tight turn radius of 14.73’ feet which means that the ice can be resurfaced quickly, efficiently, and without overlaps. It also features dual touch screens, joystick controls and an automatic mode for outstanding ease of use.
Every Mammoth includes a certified passenger seat with built-in safety features, the perfect marketing tool. Technically sophisticated, user-friendly, and with numerous extras, WM Mammoth is the champion of professional ice resurfacing for ice skating arenas. Backed by our factory extended machine and battery warranty up to 5 years, it is also backed by our factory extended machine and battery warranty.
Mammoth Highlights
Leisurely driving experience with one button Automatic Mode
The WM Mammoth guarantees outstanding comfort for the driver and boasts an entirely unobstructed view, whether you're driving cabin-free or with all-around glass. Three steps provide easy entry to the vehicle. All essential functions are operated from our newly improved joystick and dual touch screen monitors. With a simple button press, the automatic mode begins all work operations in a pre-defined order to assist the driver and comes standard on all Mammoths. Additionally, important information is clearly visible at a glance on the color display.
Three braking systems
Crafted uniquely for the Mammoth, our braking technology blends the mechanical braking approach with energy recuperation – the hallmark of a true electric vehicle. Explore our groundbreaking system.
Dual Drive
Dual Drive is an intelligent control system that guarantees optimal traction on the ice by ideal power distribution between the front and rear axles.

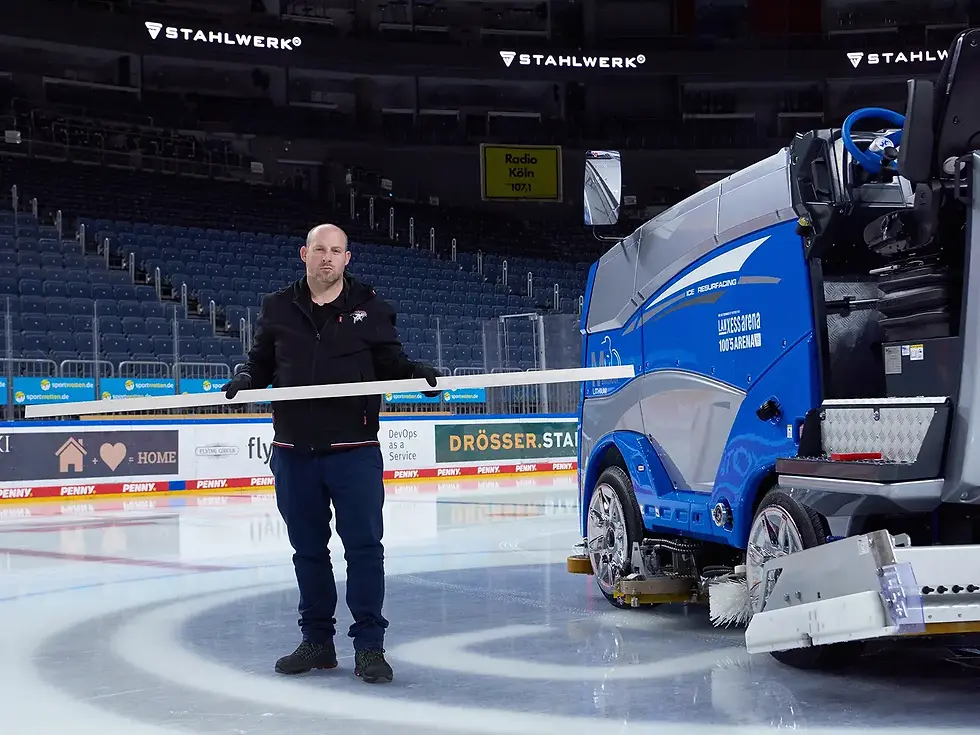

Ultra-light blade
The WM Mammoth quick blade-change system eases working life enormously: Blades can be changed in just 60 seconds! The blades are made in a special steel, giving you both an above-average service life and an impressive weight. Weighing less than 7 lbs, they are just 6.6 lbs. - (3.5 kilos). Blade changes can be carried out quickly and safely. Two blades, together with all accessory equipment, are supplied as standard in a practical wooden transport box.
Easy, quick, and precise blade change
Low injury risk
Improved quality of ice
Autonomous
A machine for ice resurfacing that autonomously performs the entire sequence of tasks has the considerable benefit of allowing the ice master to observe the process from a safe distance. This way, the operator can focus on other, more critical tasks. However, the real advantages lie in the ice surface’s consistent quality and the machine’s optimal use. Both factors directly impact costs.
By utilizing the latest technologies, such as an autopilot with an ice-thickness regulation system (laser leveling system), ease of use has significantly improved up to fully autonomous operation. Robots have already successfully applied this principle in floor cleaning or lawn maintenance.
The Ice Master Innovation
Self-Driving Autopilot Function
By means of a GPS positioning system, the vehicle covers the whole ice rink on a predefined route and is capable of completely resurfacing the ice rink without a driver. WM Mammoth Autopilot is controlled by means of an app, which displays all critical parameters and allows easy adjustments to the Mammoth while in operation, such as water flow and blade depth. The redundant safety system guarantees that the vehicle can be stopped at all times when in autopilot mode. The best assistant an ice-master could ever want!
Self-Driving Autopilot 3D Autonomous Laser Mapping
The Ice Master Innovation
With Autopilot 3D, WM technics is redefining ice maintenance: A system that takes care of the ice fully autonomously and keeps ice thickness automatically within the ideal range – a dream come true for ice professionals. This groundbreaking system finely tunes the ice surface and plays a significant role in energy efficiency.
How it Works:
Mammoth Autopilot 3D is controlled by means of an app, which displays all critical parameters and allows easy adjustments to the Mammoth while in operation. Unlike Autopilot, the addition of the 3D laser mapping system automatically controls the full resurfacing process to include water flow and blade depth. With the addition of the 3D laser mapping system, the Mammoth produces a topographical map of the ice surface on each resurfacing, displaying the Mammoth's precise location and providing the ice thickness at that exact location to allow the Mammoth to adjust for proper blade adjustment and water flow automatically. This is a considerable improvement over the existing laser leveling systems today, as they respond only after sensing the change in ice thickness.
Savings:
Indeed, the thickness of the ice impacts energy consumption: every additional half inch of ice leads to up to 15% more cooling needs. With your staff's ever-changing demands, 3D autonomous mapping will save time and resources.
Autopilot 3D seamlessly blends technology with sustainability, merging top-tier performance with an eco-friendly approach. This revolutionary feature is exclusively found in the Mammoth ice resurfacer and is controlled with the WM Autopilot APP. Add 3D Laser Mapping to your WM Mammoth Today!
Ease of Maintenance
The entire machine technology is easily accessible just by lifting the cab. This means that mechanics can carry out their work quickly and cleanly, which in turn saves on time and service costs. Our team may also utilize remote monitoring through the optional WM Connect App to keep an eye on your vehicle and address any issues that may arise. Make the most of all the advantages of direct contact with the manufacturer!
Cost-efficient maintenance and operation.
Free and easy access to the engine compartment.
Optional WM Connect remote maintenance.
Online spare parts catalogue Blue Shop
Shira or Mammoth: which is the ideal solution for your stadium?
They may at first glance seem similar, but it is the details that determine the ideal machine for your facility. We have compared the Shira and Mammoth models to highlight the key differences between them in terms of their operational capacity, dimensions and automation systems. This comparison will help you understand where Shira’s agility ends and Mammoth’s productive power begins.
Ice Surface Size
28,000 ft²
2,600 m²
Snow tank volume
106 ft³ / compacted 127 ft³
3 m³ / compacted 3.6 m³
Water tank volume
264 gal / 356 gal / 462 gal
1,000 l / 1,350 l / 1,750 l
+ Snow tank-water tank connection (for water fountain sprayer)
528 gal / 620 gal / 726 gal
2,000 l / 2,350 l / 2,750 l
Blade width
82 5/8 in / 90 1/2 in
2,100 mm / 2,300 mm
Blade change
5 minutes
Motor
5 asynchronous motors
Optional 6 asynchronous motors
Speed
0 - 8 mph
0 - 13 km/h
Display
High-resolution 7” color touchscreen
Controls
Keyboard
Driver‘s seat
Spring-suspended & adjustable driver‘s seat with armrests
Passenger/Training Seat
Yes - SUVA certified
Service brake
Optional
Snowbin inspection hatch
Manual snowbin inspection hatch
Water Fountain Sprayer
Optional
Conditioner system material
Powder-coated steel
Cutting Blade
Regular blade
Board Brush
Galvanized steel side brush
Ice Edger
Galvanized steel edger
Snow bin & water tank connection
Yes
Automatic water filling system with immobilizer
Yes
Bodywork
1-colour bodywork
Wheel rims
9″ x 16″
Bumper
No
Daytime running lights
Optional
WM Connect wi-fi
Optional
WORKspace
Yes - Online 3D parts ordering
Autopilot 3D
No
IceSense
No
Ice Surface Size
28,000 ft²
2,600 m²
Snow tank volume
106 ft³ / compacted 127 ft³
3 m³ / compacted 3.6 m³
Water tank volume
264 gal / 356 gal / 462 gal
1,000 l / 1,350 l / 1,750 l
+ Snow tank-water tank connection (for water fountain sprayer)
528 gal / 620 gal / 726 gal
2,000 l / 2,350 l / 2,750 l
Blade width
82 5/8 in / 90 1/2 in / 98 7/16 in
2,100 mm / 2,300 mm / 2,500 mm
Blade change
< 60 seconds
Motor
5 asynchronous motors
Optional 6 asynchronous motors
Speed
0 - 8 mph
0 - 13 km/h
Display
Dual Screen: 2 high-resolution 7” color touchscreens
Controls
Joystick
Driver‘s seat
Spring-suspended & adjustable driver‘s seat with armrests (fabric)
Passenger/Training Seat
Yes - SUVA certified
Service brake
Service brake with hydraulic brake force booster
Snowbin inspection hatch
Electrical snowbin inspection hatch
Water Fountain Sprayer
Optional
Conditioner system material
Stainless steel
Cutting Blade
Super-light blade - 7.72 lbs or 3.5 kg
Board Brush
Stainless steel side brush
Ice Edger
Stainless steel edger
Snow bin & water tank connection
Yes
Automatic water filling system with immobilizer
Yes
Bodywork
2-colour bodywork
Wheel rims
9″ x 16″ with hubcaps
Bumper
Yes
Daytime running lights
Led daytime running light
WM Connect wi-fi
Optional
WORKspace
Yes - Online 3D parts ordering
Autopilot 3D
Optional
IceSense
Optional
