Introduction

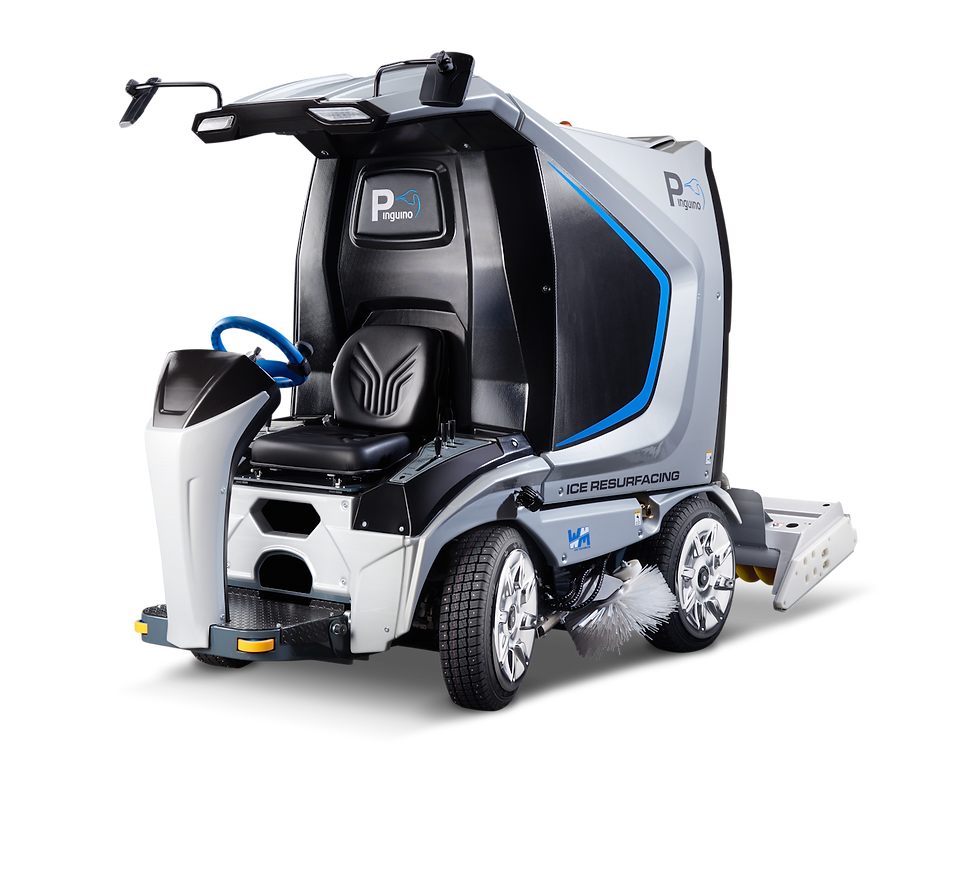

Sporting events or ice skating on a mobile rink: With the nippy little WM Pinguino, cleaning and caring for smaller ice surfaces is a breeze: Perfect ice quality and great fun guaranteed! The innovative ice resurfacer with the compact dimensions 13' long, 6' 7" high (3 m long, 2 m high) has nothing to envy from the big pros: It planes ice with the greatest of efficiency, and guarantees outstanding ice quality. One of its unique features is its up-front driver’s seat. Which ensures a clear all-around view and makes work operations considerably easier for the driver, even for inexperienced operators.
The mini-revolution in ice resurfacing
Whether sporting events or ice skating on a mobile rink, the nimble Pinguino makes cleaning and maintaining smaller ice surfaces effortless. This innovative, compact ice resurfacer (3 meters / 10 feet long, 2 meters / 6.5 feet high) matches the performance of its larger counterparts, planing ice with impressive efficiency and delivering exceptional ice quality. Its front-facing driver’s seat is a standout feature, offering a clear 360° view and making operations significantly more accessible, even for less experienced users.
With its modern design, top-quality construction, and ease of maintenance, resurfacing mobile ice rinks has never been more professional or straightforward!
Convenient maintenance
All machine components are easily accessible without the need to remove parts, making maintenance quick, simple, and very cost-effective, keeping operating costs to a minimum.
Customer Service
The Pinguino offers numerous configuration options: with a wide range of accessories, you can fully customize your machine to perfectly suit your specific needs.
Highlights
The outstanding advantages of the WM Compact, at a glance: Find out exactly why the WM Compact is the perfect ice resurfacer for large mobile ice rinks.
Equipment
The initial setup, maintenance, and repairs will be performed by our factory trained technitions so that we can guarantee you rapid customer service directly on-site and at all times.
Ease of Maintenance
The entire machine technology is easily accessible just by lifting the cab. This means that mechanics can carry out their work quickly and cleanly, which in turn saves on time and service costs. Make the most of all the advantages of direct contact with the manufacturer!
Cost-efficient maintenance and operation.
Free and easy access to the engine compartment.
Online spare parts catalogue Blue Shop
Shira or Mammoth: which is the ideal solution for your stadium?
They may at first glance seem similar, but it is the details that determine the ideal machine for your facility. We have compared the Shira and Mammoth models to highlight the key differences between them in terms of their operational capacity, dimensions and automation systems. This comparison will help you understand where Shira’s agility ends and Mammoth’s productive power begins.
Ice Surface Size
28,000 ft²
2,600 m²
Snow tank volume
106 ft³ / compacted 127 ft³
3 m³ / compacted 3.6 m³
Water tank volume
264 gal / 356 gal / 462 gal
1,000 l / 1,350 l / 1,750 l
+ Snow tank-water tank connection (for water fountain sprayer)
528 gal / 620 gal / 726 gal
2,000 l / 2,350 l / 2,750 l
Blade width
82 5/8 in / 90 1/2 in
2,100 mm / 2,300 mm
Blade change
5 minutes
Motor
5 asynchronous motors
Optional 6 asynchronous motors
Speed
0 - 8 mph
0 - 13 km/h
Display
High-resolution 7” color touchscreen
Controls
Keyboard
Driver‘s seat
Spring-suspended & adjustable driver‘s seat with armrests
Passenger/Training Seat
Yes - SUVA certified
Service brake
Optional
Snowbin inspection hatch
Manual snowbin inspection hatch
Water Fountain Sprayer
Optional
Conditioner system material
Powder-coated steel
Cutting Blade
Regular blade
Board Brush
Galvanized steel side brush
Ice Edger
Galvanized steel edger
Snow bin & water tank connection
Yes
Automatic water filling system with immobilizer
Yes
Bodywork
1-colour bodywork
Wheel rims
9″ x 16″
Bumper
No
Daytime running lights
Optional
WM Connect wi-fi
Optional
WORKspace
Yes - Online 3D parts ordering
Autopilot 3D
No
IceSense
No
Ice Surface Size
28,000 ft²
2,600 m²
Snow tank volume
106 ft³ / compacted 127 ft³
3 m³ / compacted 3.6 m³
Water tank volume
264 gal / 356 gal / 462 gal
1,000 l / 1,350 l / 1,750 l
+ Snow tank-water tank connection (for water fountain sprayer)
528 gal / 620 gal / 726 gal
2,000 l / 2,350 l / 2,750 l
Blade width
82 5/8 in / 90 1/2 in / 98 7/16 in
2,100 mm / 2,300 mm / 2,500 mm
Blade change
< 60 seconds
Motor
5 asynchronous motors
Optional 6 asynchronous motors
Speed
0 - 8 mph
0 - 13 km/h
Display
Dual Screen: 2 high-resolution 7” color touchscreens
Controls
Joystick
Driver‘s seat
Spring-suspended & adjustable driver‘s seat with armrests (fabric)
Passenger/Training Seat
Yes - SUVA certified
Service brake
Service brake with hydraulic brake force booster
Snowbin inspection hatch
Electrical snowbin inspection hatch
Water Fountain Sprayer
Optional
Conditioner system material
Stainless steel
Cutting Blade
Super-light blade - 7.72 lbs or 3.5 kg
Board Brush
Stainless steel side brush
Ice Edger
Stainless steel edger
Snow bin & water tank connection
Yes
Automatic water filling system with immobilizer
Yes
Bodywork
2-colour bodywork
Wheel rims
9″ x 16″ with hubcaps
Bumper
Yes
Daytime running lights
Led daytime running light
WM Connect wi-fi
Optional
WORKspace
Yes - Online 3D parts ordering
Autopilot 3D
Optional
IceSense
Optional
